Multi-Plate

Developed over 75 years ago, MULTI-PLATE is available in spans to 26 feet and can be arranged and curved to make a variety of shapes including pipe, pipe-arch, horizontal and vertical ellipses, arches, and underpasses.

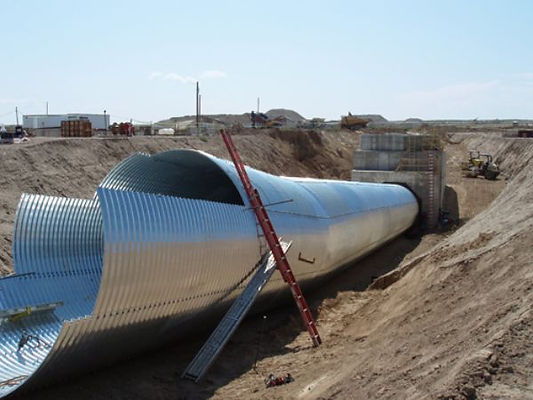

multiplate_CO_TYPEAggregateConveyorTunne

product description

FEATURES:

  • Spans to 26 ft

  • Variety of shapes, sizes and end treatments
    for any given application

  • Fast, easy, low cost installation

  • Significant load carrying capacity

  • Extensive technical support

  • Economical solution

BENEFITS:

  • Buried Bridge Structure - Reduces maintenance costs and lowers life cycle costs as there are no bridge deck or joints at the deck/roadway interface.

  • Modular Bridge System - Rapid installation results in reduced overall project costs, delays and detours.

  • Designed “Site Specific” - Meets your site needs in full compliance with AASHTO, ASTM & AREMA design standards for highway and railway use.

  • Easy Site-Adaptability - Flexible layout options to fit within the right-of-way – curve the structure with a stream or adjust for vertical and horizontal clearance requirements.
